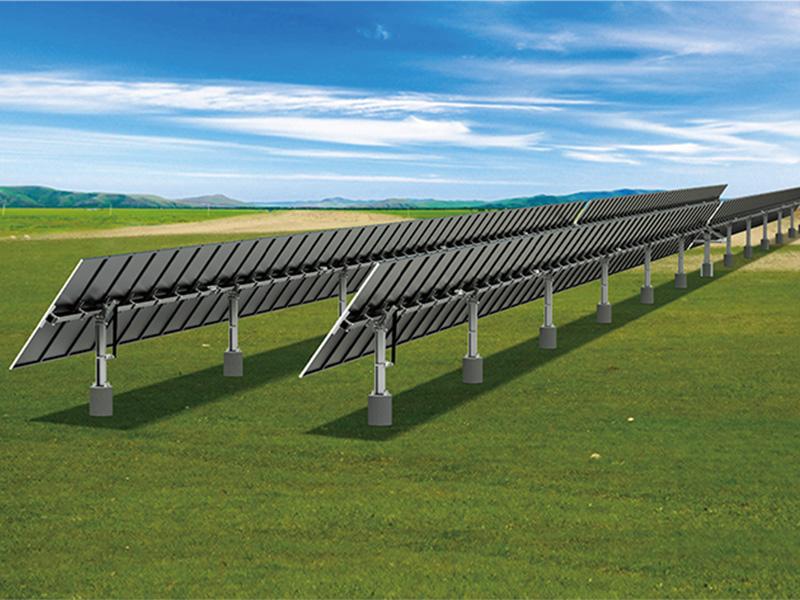

The dual-row linkage tracking system adopts innovative design, which makes the production and installation simpler and more effective, cost-effective, intelligent operation and remote monitoring system make it easy for you to track the sunshine direction in real time. Simple structural design also greatly improves the workload and time of daily maintenance. Accurate tracking algorithm ensures that every moment of sunshine will not be wasted and brings you higher energy output than fixed type.

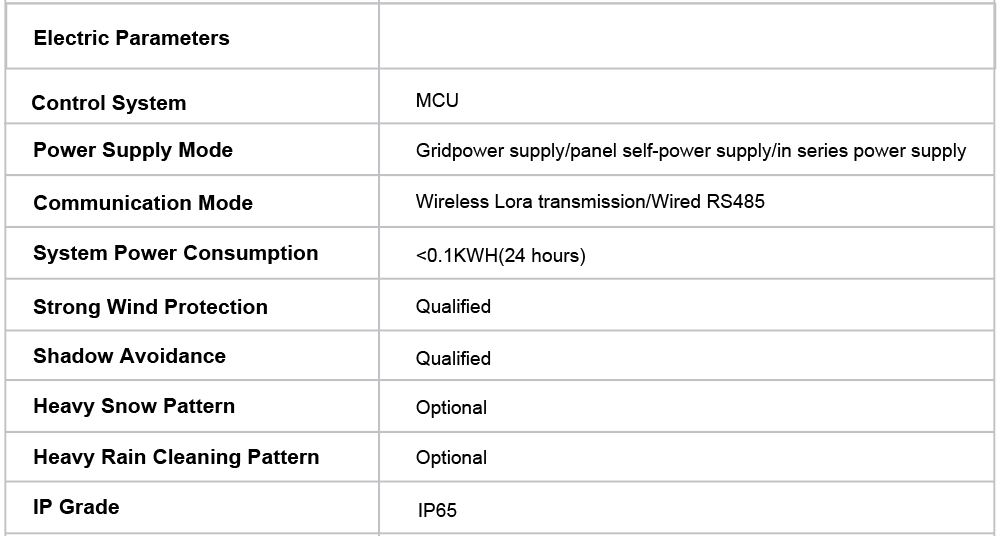

Technical Data
Install Sit
Open field area
Tracker Mode
Single row Portrait, 2 rows linkage
PV Panel installation
2X(1x56)(Not more than 120 pieces)
Control Mode
Astronomical algorthm+closed-loop control (Al)
Mechanical Tracking Accuracy
±2°
Tracking Range
±45/+60°(customizable)
Drive Mode
Slew driver/Linear Actuator
Land Utilization Rate GCR
25%~50%
Structure Material
Hot Dip Galvanized Steel /Zn-Al-Mg Coating Steel
Type of Foundation
Ramming post, PHC pile, Concrete
Operating Wind Speed
18m/s(customizable)
Operating Wind Speed
Design according to the wind speed of the project
Operating Temperature
-30°C~70°C (customizable)
Material
Steel
Anti-corrosive
Anodized
Color
Silver
Quality Guarante
10 years (2years for electrical and drive parts)
Key Features
- Double row desian is more economical. more square make full use ofland,more convenient operation and maintenance.
- Adapt to not more than 20% of slope of all kinds of ground. adapt tomore terrain.
- Using Lora wireless for informationtransmission,transmissiondistanceislonger,the signalis more stable.
- Passed TUV, SGS, CE.wind tunnel test.
- Self-learning and adaptive Al intelligent control.
- Professional team to provide technical support and after-sales service.
Components

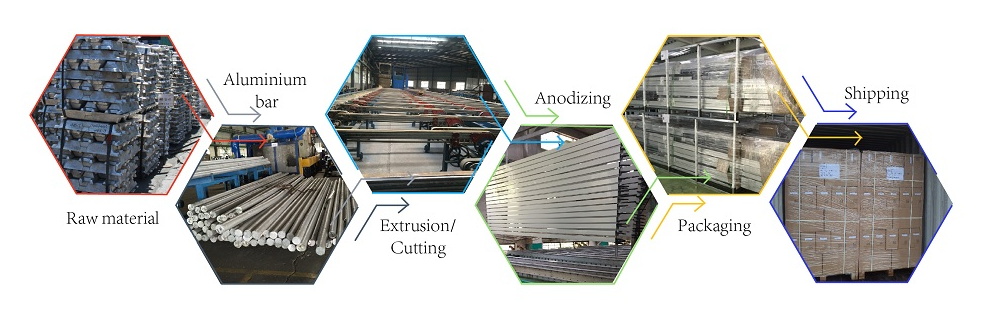

Production Process
Production Process
1. Top quality with competitive price---one of the biggest aluminum solar mounting manufacturer with integrated production in Xiamen.
2. Full anodize for all components---offering 12 year warranty and 25 year life time.
3. Excellent design ability---over 20 structure engineers, the chief engineer has 10 years' experience of structure engineering for aluminum solar mounting systems.
