Our mid clamp solar mounting components are using high quality anodized aluminum (AL6005-T5) which is complied with international stardards.
Great tensile strenth and excellent anticorrosion.
Item NO.:
KF-T-01Payment:
T/T, L/CProduct Origin:
ChinaLead Time:
7 daysMaterial:
Aluminium, SteelColor:
Silver, BlackAluminum T-Clamp Middle Clamp Solar Middle Clamp
This solar mounting mid clamps are designed for frame solar panels, the thickness can be from 35 mm to 50 mm.
It’s used in the middle of two panels, fasten well and good corrosion resistance.
The mid clamp is a must for PV module installation, our specially designed can making it significantly stronger.
The fasten bolt is made of stainless steel , the standard length can be customized according to solar panel’s thickness.
Technical Data
| Install Site | Open field area |
| Max Wind Speed | ≤60m/s |
| Snow Load | ≤1.4KN/M2 |
| Tilt Angle | 0-45 degree |
| Applicable Module | Framed or frameless |
| Module Orientation | Landscape, portrait |
| Standards | AS/NZS 1170, ASCE 7-10, JIS2017 |
| Material | AL6005-T5, SUS304 |
| Anti-corrosive | Anodized |
| Color | Silver, Black |
| Warranty | 12 years |
Key Features
- Top quality with competitive price---one of the biggest aluminum solar mounting manufacturer with integrated production in Xiamen.
- To provide you with the most cost-effective solar racking solution.
- Full anodize for all components---offering 12 year warranty and 25 year life time.
- Excellent design ability---over 20 structure engineers, the chief engineer has 10 years' experience of structure engineering for aluminum solar mounting systems.
- Components are highly pre-assembled at the factory, saving you a lot of time and cost.

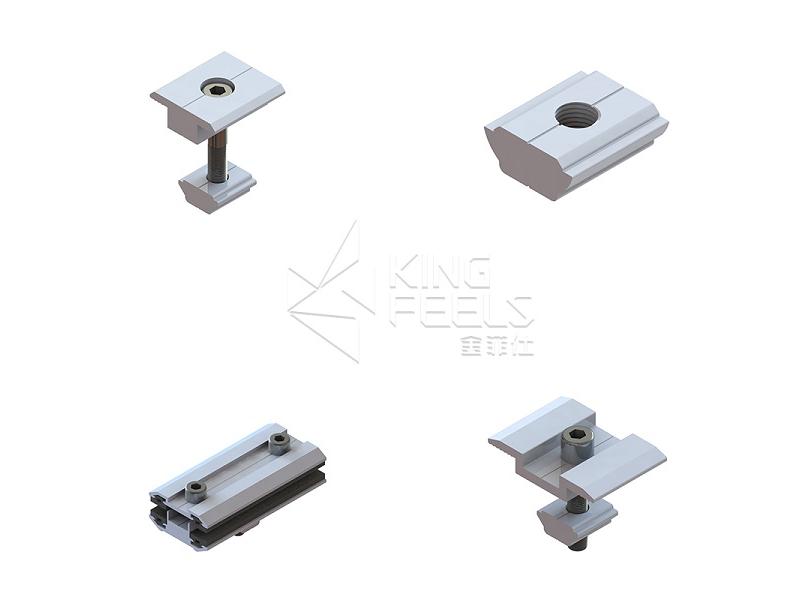

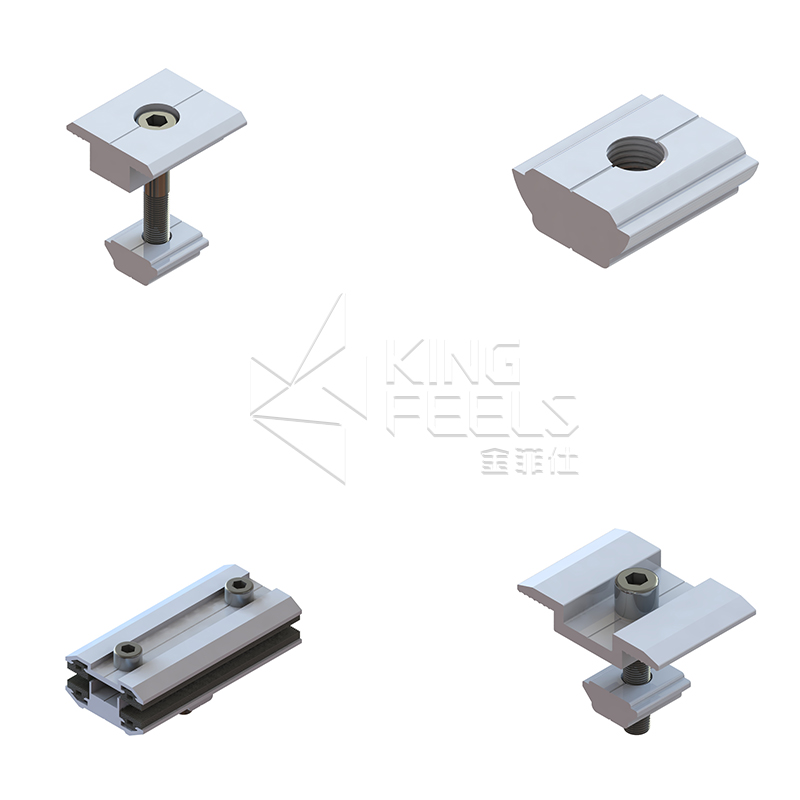

Components
Production Process
Why choose Kingfeels ?
1. Top quality with competitive price---one of the biggest aluminum solar mounting manufacturer with integrated production in Xiamen.
2. Full anodize for all components---offering 12 year warranty and 25 year life time.
3. Excellent design ability---over 20 structure engineers, the chief engineer has 10 years' experience of structure engineering for aluminum solar mounting systems.
